Performance of Haskell programs

Bibliography

“Real World Haskell”, Bryan O’Sullivan, John Goerzen & Don Stewart. Chapter 25.

Haskell performance tutorial @ CUFP, Johan Tibell:

http://blog.johantibell.com/2010/07/high-performance-haskell-tutorial-at.html

Pros and cons of high-level languages

• Haskell is a very high-level language:
  • algebraic data types, higher-order functions, type classes, lazy evaluation
  • automatic memory management (GC)
  • parallel / concurrent execution
• We do not need to specify many implementation details
• We can use equational reasoning to simplify programs (“executable mathematics”)
• But what about the computational process itself?
  • time spent, memory used

Reasoning about performance

• How can we measure the time and memory used?
• Given two equivalent programs, how do we choose the more efficent one?
• Given an inefficient program, how do we make it better?

Profiling

Profiling

• Compiling and executing the program in a special way to measure execution costs (space and time)
• Assign costs to centers (e.g. functions)
• Allows the programmer to identify performance bottlenecks
  • functions that consume most time
  • functions that retain most memory
  • graph memory allocation vs time by function or data type
• Objective: focus optimization efforts

Example: computing averages

avg :: [Double] -> Double
avg xs = sum / fromIntegral (length xs)
 -- sum :: [Double] -> Double
 -- length :: [Double] -> Int

main = do
   n <- readLn
   print (avg [1..n])

How much memory does this program use for input \(n\)?

Step 1: Collecting runtime statistics

$ ghc Avg.hs
$ ./Avg +RTS -s

• Options after +RTS are for the runtime system
• +RTS -s prints a summary of runtime statistics

Sample output

$ echo 1e6 | ./Avg +RTS -s
     257,391,016 bytes allocated in the heap
     280,151,128 bytes copied during GC
      67,918,488 bytes maximum residency (9 sample(s))
       7,771,496 bytes maximum slop
             145 MB total memory in use (0 MB lost due to fragmentation)

                                     Tot time (elapsed)  Avg pause  Max pause
  Gen  0       482 colls,     0 par    0.143s   0.143s     0.0003s    0.0011s
  Gen  1         9 colls,     0 par    0.158s   0.158s     0.0176s    0.0681s

Overview of statistics collected

• Allocations, GC and memory usage (residency)
• Percentage of time spent on GC vs. actual computation
• For our example (1 million floats):

145 MB total memory in use
%GC     time      76.3%  (76.7% elapsed)

• Why did this program use so much memory?
• Why so much time spent on GC?

Step 2: Profiling

• Compile with profiling
• Running to report heap allocations:

$ ghc -prof -auto-all Avg.hs
$ echo 1e6 | ./Avg +RTS -p -hc
# generates Avg.prof

        Mon May 25 16:51 2020 Time and Allocation Profiling Report  (Final)

           Avg +RTS -p -hc -RTS

        total time  =        0.14 secs   (141 ticks @ 1000 us, 1 processor)
        total alloc = 224,128,320 bytes  (excludes profiling overheads)

COST CENTRE MODULE SRC                   %time %alloc

main        Main   Avg.hs:(8,1)-(10,20)   58.2   75.0
avg         Main   Avg.hs:5:1-42          41.8   25.0
...

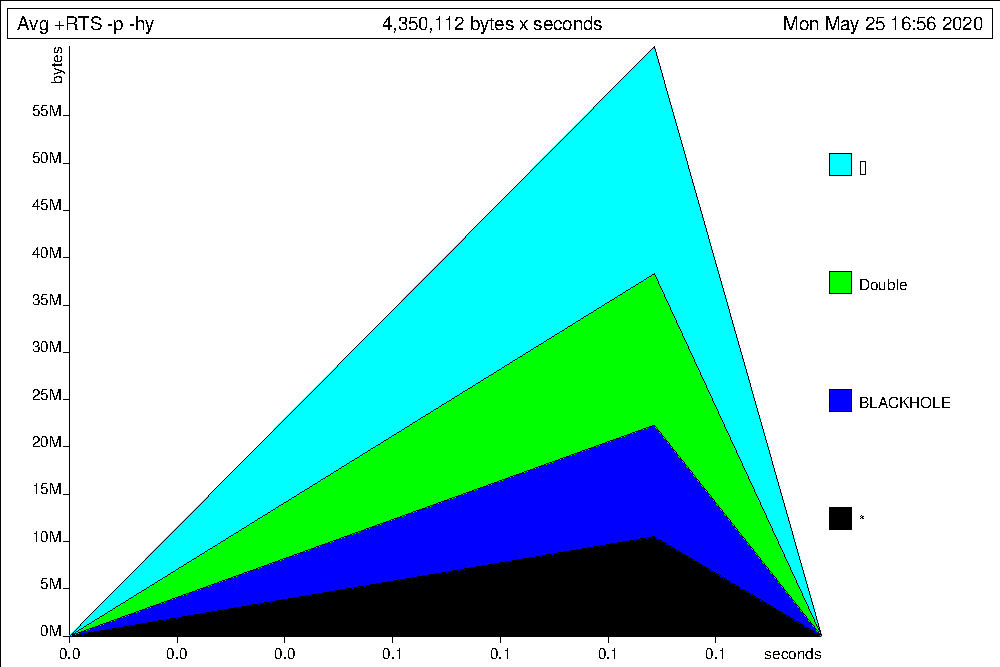

Profiling heap types

Run profiling again to view heap allocation by data types.

$ echo 1e6 | ./Avg +RTS -p -hy
# generates `Avg.prof' and `Avg.hp'
$ hp2ps -c -e5in Avg.hp
# generates `Avg.ps' chart

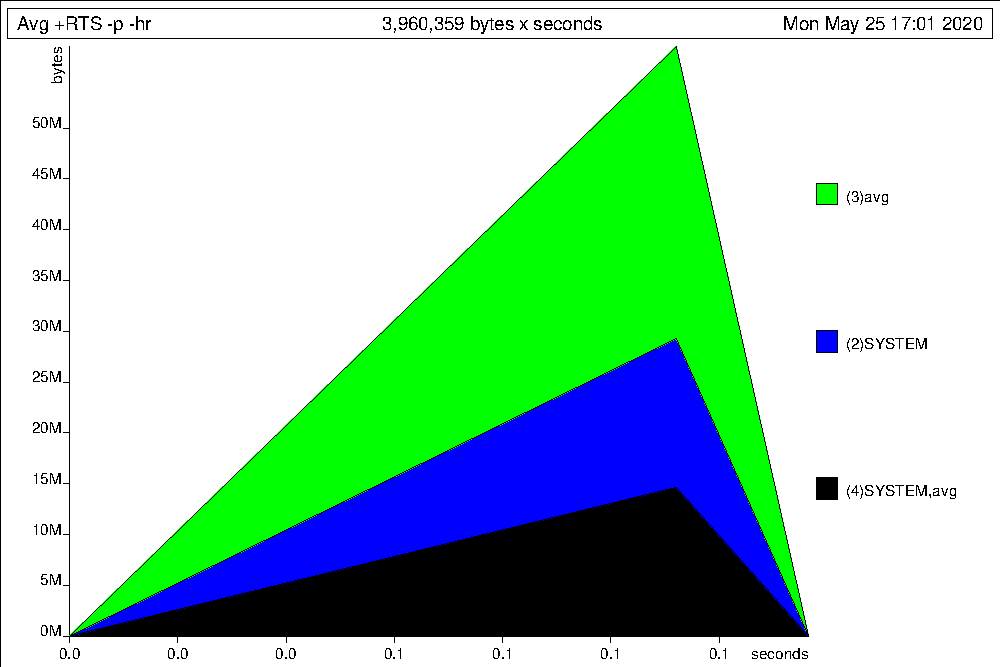

Profiling retentions

Run profiling again to view which functions are causing heap retention.

$ echo 1e6 | ./Avg +RTS -p -hr
$ hp2ps -c -e5in Avg.hp

Understanding the profile

avg :: [Double] -> Double
avg xs = sum xs / fromIntegral (length xs)

main = print (avg [1..1e6])

• Why does avg retain the entire list rather than consume it one value at a time?
• Answer: the list cannot be deallocated as we sum because it is also needed for computing the length

Attempt to improve retention

avg :: [Double] -> Double
avg xs = loop xs (0,0)
  where
  -- tail recursive function
  loop [] (s,n)     = s / fromIntegral n
  loop (x:xs) (s,n) = loop xs (x+s,1+n)

• Let us compute the sum and length in one go using a tail-recursive function
• This should allow deallocating list nodes as we go along

Profiling again

Compiled with optimizations (-O2)

• 1 MB total memory in use (constant independent of \(n\))
• Percentage of GC time: 0.6%

Compiled without optimizations (-O0)

• 200 MB total memory in use for \(n=\) 1 million
• Percentage of GC time: 64.7%
• Why is this is worse than before?

Lazy evaluation

• Haskell is a non-strict language
• Functions evaluate their arguments only if needed
• Non-strict semantics is implemented using lazy evaluation
• Arguments are suspended as “thunks” in the heap until they are needed for:
  • primitive operations (+, -, *, etc.)
  • pattern matching in case or if

Lazy evaluation of average

  avg [1,2,3]
= loop [1,2,3] (0,0)
= loop [2,3] (1+0,1+0)
= loop [3] (2+1+0,1+1+0)
= loop [] (3+2+1+0,1+1+1+0)
= (3+2+1+0) / fromInt (1+1+1+0)
= 6 / 3
= 2.0

• All computation is delayed until the last operation
• For length \(n\) this builds up thunks of size \(O(n)\): \(n+n-1+\cdots+1+0\) and \(1+1+\cdots+1+0\)

Eager evaluation of average

  avg [1,2,3]
= loop [1,2,3] (0,0)
= loop [2,3] (1+0, 1+0)
= loop [2,3] (1, 1)
= loop [3] (2+1,1+1)
= loop [3] (3, 2)
= loop [] (3+3,1+2)
= loop [] (6, 3)
= 6 / 3
= 2.0

Optimizing lazy evaluation

• Eager and lazy always yield the same result if both terminate
• In this example could use eager evaluation to avoid the excessive space use
• The compiler may be able to perform this optimization
  • but it depends on the “cleverness” of the compiler
• We should instead control evaluation order explicitly:
  • independent of optimization level
  • ensuring performance is predictable

Controling evaluation

The primitive function seq function allows controlling evaluation order.

seq :: a -> b -> b

Evaluation of seq x y first evaluates x and then returns y.

Controlling evaluation (1)

We can use seq to force evaluation of s and n before the tail call.

avg :: [Double] -> Double
avg xs = loop xs (0,0)
  where
   loop [] (s,n) = s / fromIntegral n
   loop (x:xs) (s,n)
       = s `seq` n `seq` loop xs (x+s,1+n)

Controlling evaluation (2)

Easier alternative: just use bang patterns.

{-# LANGUAGE BangPatterns #-}

avg :: [Double] -> Double
avg xs = loop xs (0,0)
  where
   loop []     (!s,!n) = s / fromIntegral n
   loop (x:xs) (!s,!n) = loop xs (x+s,1+n)

Results

• Both alternatives run in constant space
• 1 MB total memory independent of optimization level

Folds

Fold operations

Recall the higher-order fold operations (also called reduce) that process a list using some argument function.

https://en.wikipedia.org/wiki/Fold_(higher-order_function)

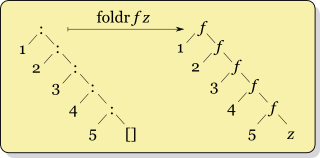

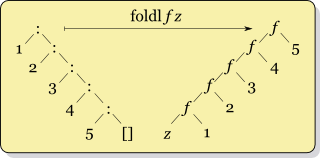

Left and right folds

foldr (+) 0 [1, 2, 3, 4, 5]
= 1 + (2 + (3 + (4 + (5 + 0))))

foldl (+) 0 [1, 2, 3, 4, 5]
= ((((0 + 1) + 2) + 3) + 4) + 5

Left vs. right folds

• foldr requires traversing the entire before we can accumulating
• foldl can start accumulating immediately
• Let us re-write average using a left fold

Accumulating using a left fold

We could rewrite the average example using a left fold.

avg :: [Double] -> Double
avg xs = s / fromIntegral (n :: Int)
   where (s, n) = foldl f (0,0) xs
         f (!s,!n) x = (x+s,1+n)

However, even with bang patterns, this still exhibits excessive space use!

The problem with foldl

foldl f z [] = z
foldl f z (x:xs) = f (fold f z xs) x


  foldl f z [x1, x2, x3, x4]
=
  f (f (f (f z x4) x3) x2) x1

For a list with \(n\) elements foldl builds a a thunk of \(n\) f applications.

A strict left fold

To avoid the excessive lazyness we can use the strict left fold foldl' (from Data.List):

foldl' f z [] = z
foldl' f z (x:xs) = let z' = f z x
                    in z' `seq` foldl' f z' xs

foldl' forces evaluation of f before each recursive call.

Constant-space average

import Data.List (foldl')

avg :: [Double] -> Double
avg xs = s / fromIntegral (n :: Int)
   where (s, n) = foldl' f (0,0) xs
         f (!s,!n) x = (x+s,1+n)

Note that we still need the bang patterns (!).

Reasoning about space usage

Reasoning about space usage

Knowning how GHC represents values in memory is useful

• allows us to approximate memory usage
• allows us to count number of indirections which affect cache behavior

Memory layout

Example: the list [1,2].

• Each box represents contiguous blocks of machine words
• Arrows represent pointers
• Each constructor has one word overhead (tag)

Memory usage for constructors

• Rough estimate: each constructor uses 1 word for a header and 1 word for each field

   data T a b = C1 a | C2 a b
   -- C1 takes 2 words; C2 takes 3 words

• Exception: constructors with no fields (like Nothing, True or []) take zero space because they are shared

Unboxed types

• GHC defines several unboxed types representing primitive machine types
• Convention: names of unboxed types end with #
  • e.g. Int#, Double#
• Most unboxed types take up one word
• Values of unboxed types can never be thunks
• Basic types are internally defined in term of unboxed types

   data Int = I# Int#

• Basic types such as Int are called boxed (they are stored as small “boxes” in the heap)

Quiz

data IntPair = IP Int Int

How many words to store a value of this type?

Why box basic types?

Arguments must be passed unevaluated to allow lazy evaluation. Example:

cond :: Bool -> Int -> Int -> Int
cond True x y  = x
cond False x y = y

> cond True 42 (1`div`0)
42

Unpacking

GHC allows controls over data representation using the UNPACK pragma:

• unpacks the contents of a contructor as a field of another constructor
• removes one level of indirection
• any strict, monomorphic and single constructor field may be unpacked

Using UNPACK

Add the pragma just before the strictness annotation (!):

data Foo = Foo {-# UNPACK #-} !Int

GHC will also unpack automatically if you compile with optimizations.

Example of unpacking

data IntPair = IP Int Int

data IntPair = IP {-# UNPACK #-} !Int
                  {-# UNPACK #-} !Int

Nested unpacking

Unpacking also works for nested data types.

Example: a pair of pairs.

data IntQuad = IQ {-# UNPACK -#} !IntPair
                  {-# UNPACK -#} !IntPair

Benefits of unpacking

• Reduced allocations (3 words vs 7 for IntPair)
• Fewer indirections (allows better cache performance)

However: there are situations where making fields strict and unpacking them can hurt performance e.g. the data is passed to a non-strict function.
